Reinforced Plastic Guide Pulleys

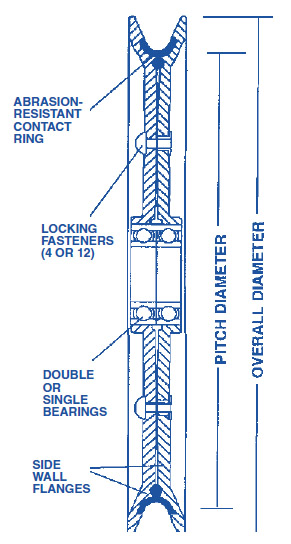

Pulley Sketch Pulley Photo These highly durable reinforced pulleys, with their replaceable contact rings, are ideal for guiding or redirecting all types of wire.

Flanges are bolted together, so individual parts can be replaced when worn or damaged.  Each may come with single or double bearings.  The replaceable contact ring is available in hardened rubber, tungsten carbide coated steel or ceramic coated steel.  The nitrile (rubber) has highly abrasive resistance and reduces vibration.

Specifications

ITEM WP 2.5 WP 4.0 WP 6F WP 6W WP 8.0 WP 12.0 WP 16.0
Pitch Diameter 64 mm 102 mm 152 mm 152 mm 203 mm 305 mm 406 mm
Overall Diameter 89 mm 127 mm 178 mm 178 mm 241 mm 343 mm 445 mm
Approx. Weight
(w/ single bearing)		 0.09 kg 0.13 kg 0.18 kg 0.50 kg 0.73 kg 0.82 kg 3.18 kg
Flange Width 18 mm 18 mm 18 mm 33.5 mm 33.5 mm 33.5 mm 33.5 mm
Bore (A) (B) (B) (C) (C) (C) (C)
Contact Ring Radius 0.8 mm 0.8 mm 0.8 mm 6.4 mm 6.4 mm 6.4 mm 6.4 mm
(A) 3/8" and 1/2" single only
(B) 3/8", 1/2" and 15 mm double row
(C) 7/8", 3/4", 1" and 30 mm double or single
